All-in-one Suctioning and Cleaning

Introduction:

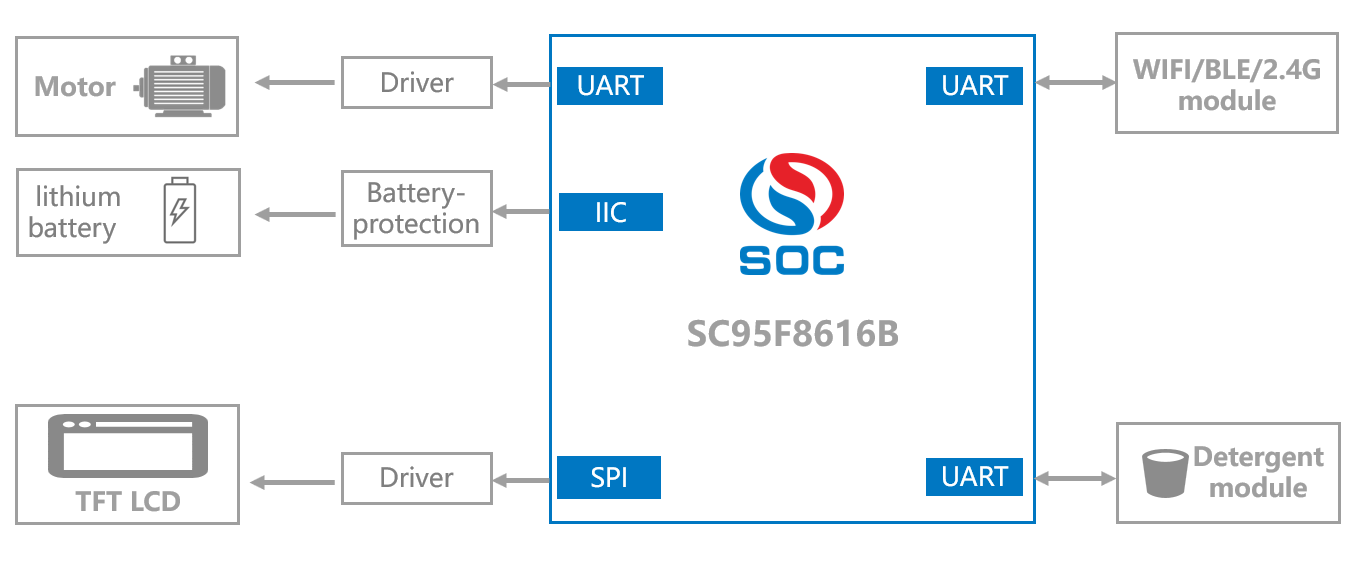

       As new household cleaning appliance, SinOne Intelligent All-in-one Suctioning and Cleaning Solution takes optional SC95F861x/SC95F876x series as the master control chip of control panel based on high-performance 8bit MCU; various interfaces are available for connecting communication modules, lithium ion battery modules and motor control for communication control.


Scheme Features

ØHigh-performance MCU, adopting master/touch/display “Three-in-one” solution

ØLarge memory, supporting OTA upgrading

ØHighly sensitive and reliable Touchkeys supporting multiple types of buttons/sliders/wheels and passing 10V dynamic CS

ØVarious interfaces, available for connecting communication modules and sensors

ØExcellent anti-interference capability



Key Features

Ø32MHz basic frequency, superspeed IT 8051 core

ØUp to128K ROM, 8K RAM

Ø17-ch 12Bit SAR ADC

Ø1 UART and 5 USCIs (UART/SPI/IIC)

ØMulti-functional PWM, with dead-time insertion and complementary output

ØHardware LED/LCD

ØHardware multiplier and divider

ØHardware CRC

ØAnalog comparator


       SinOne Intelligent All-in-one Suctioning and Cleaning solution adopts MCU SC95F861x/SC95F876x featuring high performance and large memory as the master control to realize manipulation interaction, host control and interconnection communication, etc.


Applicable Models

ØSC95F861XB/SC95F876X


Applicable Part Number

Add to compare

Compare(0)

export

3 total entries

  P/N PKG Type
ROM
(Byte)
RAM
(Byte)
IAP
(100K times)
BootLoader
Voltage
(V)
2%IRC MHz
(32K Autocorrection)
TK
(Max)
ADC
PWM
(with dead-time insertion)
UART
USCI
(UART/SPI/IIC)
LCD/LED Driver
Touch Key Application type
Touch Key Performance
SC95F8617B LQFP48/QFN48 64K 8K 0/1/2/64K Built-in0/1/2/4K 2.0~5.5V 32/16/8/4 31 12bit*17ch 16bit*14ch 1 6 8*24/6*26/5*27/4*28 Spring Buttons/Touchless Buttons/Proximity Sensing 10V dynamic CS EFT 4KV ESD 6KV
SC95F8767 LQFP48/QFN48 128K 8K 0/1/2/128K Built-in0/1/2/4K 2.0~5.5V 32/16/8/4 31 12bit*17ch 16bit*14ch 1 6 8*24/6*26/5*27/4*28 Spring Buttons/Touchless Buttons/Proximity Sensing 10V dynamic CS EFT 4KV ESD 6KV
SC95F8523 SOP28/TSSOP28 32K 4K 0/1/2/32K Built-in1K 2.0~5.5V 32/16/8/4 23 12bit*11ch 12bit*8ch 1 3 - Spring Buttons/Touchless Buttons/Proximity Sensing 10V dynamic CS EFT 4KV ESD 6KV
