Washing Machine

Introduction:

       Nowadays, the functions of washing machine have become increasingly versatile, such as setting different washing modes for different clothing materials, drying and disinfection, etc. As large household appliances, the master MCU of the washing machine is required to be with high performance and large memory as well as OTA function. SinOne has provided a complete MCU platform with functions including touchkeys, wheel/slider, display driver, OTA, etc., offering customers wide space for innovation and constantly creating values for them.

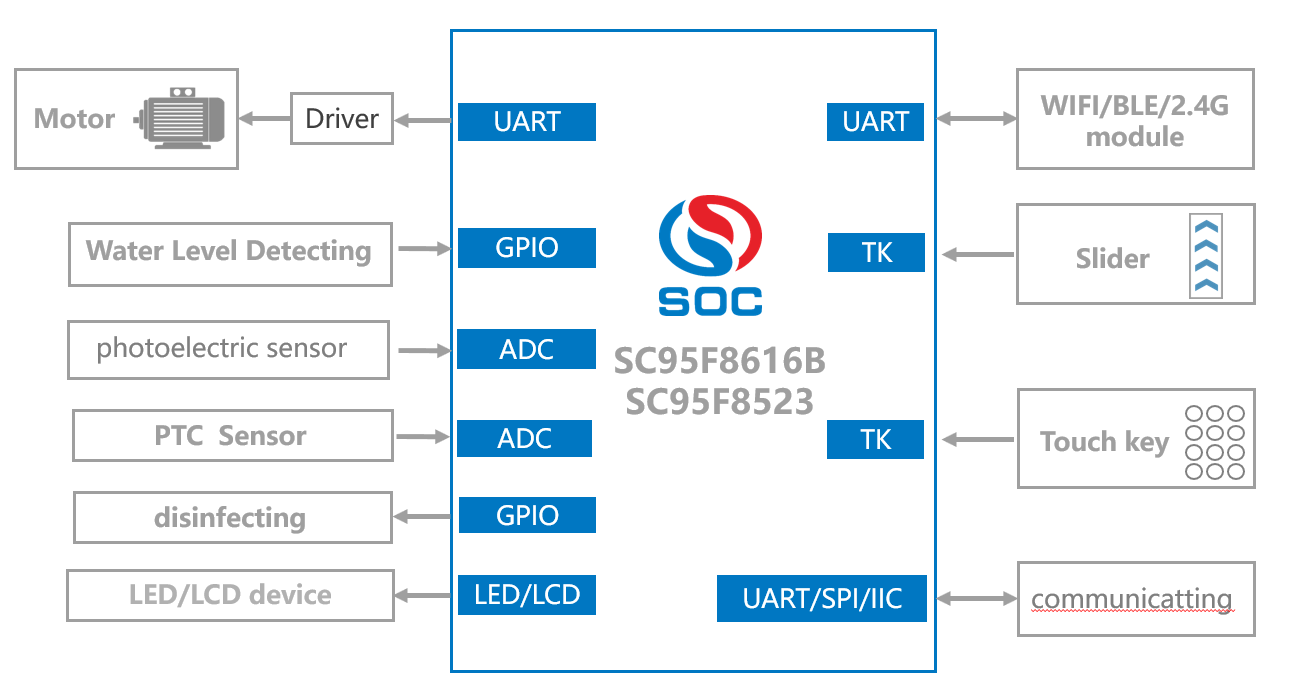

Scheme Features

ØHigh integration, adopting master + touch + display “Three-in-one” solution

ØHigh-performance and high-sensitivity touchkey, supporting up to 31 Touchkeys and passing 10V dynamic CS

ØTouchkey, supporting wheel/slider operations and featuring diversified design and graceful appearance

ØMulti-channel ADC and PWM function, available for detection of multiple sensors and motor control

ØVarious interfaces, available for connecting various wireless modules or other peripherals

ØRich resources, supporting OTA upgrading


Key Features

ØROM: 128K/64K/32K

ØSupporting up to 31 high-sensitivity Touchkeys and passing 10V dynamic CS

ØTouchkey, supporting wheel/slider operations

Ø1 independent UART, up to 6 USCIs (UART/SPI/IIC)

ØBuilt-in 4K Bootloader, supporting OTA upgrading

ØPWM: 16bit/14ch; 12bit/8ch

ØLCD/LED driver: 8*28/6*26/5*27/4*28


Applicable Models

ØSC95F876X/SC95F861XB



Applicable Part Number

Add to compare

Compare(0)

export

3 total entries

  P/N PKG Type
ROM
(Byte)
RAM
(Byte)
IAP
(100K times)
BootLoader
Voltage
(V)
2%IRC MHz
(32K Autocorrection)
TK
(Max)
ADC
PWM
(with dead-time insertion)
UART
USCI
(UART/SPI/IIC)
LCD/LED Driver
Touch Key Application type
Touch Key Performance
SC95F8766 LQFP44 128K 8K 0/1/2/128K Built-in0/1/2/4K 2.0~5.5V 32/16/8/4 31 12bit*17ch 16bit*12ch 1 5 8*24/6*26/5*27/4*28 Spring Buttons/Touchless Buttons/Proximity Sensing 10V dynamic CS EFT 4KV ESD 6KV
SC95F8616B LQFP44 64K 8K 0/1/2/64K Built-in0/1/2/4K 2.0~5.5V 32/16/8/4 31 12bit*17ch 16bit*12ch 1 5 8*24/6*26/5*27/4*28 Spring Buttons/Touchless Buttons/Proximity Sensing 10V dynamic CS EFT 4KV ESD 6KV
SC95F8523 SOP28/TSSOP28 32K 4K 0/1/2/32K Built-in1K 2.0~5.5V 32/16/8/4 23 12bit*11ch 12bit*8ch 1 3 - Spring Buttons/Touchless Buttons/Proximity Sensing 10V dynamic CS EFT 4KV ESD 6KV
