92L Touch key MCUs

       SC92L series touchkey MCU is a series of industry-grade Flash microcontroller with wide-voltage and low-power 8051 core, and its instruction sets are fully compatible with traditional 8051 series.

SC92L series touchkey MCU is internally integrated with hardware multiplier and divider and hardware CRC to speed up the data operation. Neither hardware multiplier and divider nor hardware CRC occupies CPU cycle with its operation executed by hardware and the speed faster than that executed by software.

SC92L series touchkey MCU features high performance and high reliability with a wide operating voltage range of 1.8V-5.5V and ultra-wide operating temperature range of -40℃-105℃ and has a strong capacity of 8KV ESD and 4KV EFT. Flash can be written for more than 100,000 times, which can be saved for 100 years at room temperature.

SC92L series touchkey MCU is a built in low-power watchdog timer (WDT) with 4 levels of optional low voltage reset (LVR) function and system clock monitoring function, featuring low power consumption capability in operation and power-down mode. In normal working mode, the typical value in 5V is about 4.5mA@32M.

SC92L series touchkey MCU internally integrates with up to 31 touchkeys, possesses the industry-leading touchkey circuit architecture, featuring high signal to noise ratio, high sensitivity, low power consumption and strong anti-interference, etc., all of which have passed 10V dynamic CS and been applied to touchkey applications in spring buttons, touchless buttons, proximity sensing, water level detection, etc.; meanwhile, SinOne has also offered intelligent integrated development tools, which can adapt themselves to the circuit parameters, have flexible and settable sensitivity and debug an application in 5 minutes. SC92L series touchkey MCU supports running touchkey circuit in low power mode, and can realize 8uA @12KEY 3.3 together with the software library provided by SinOne.

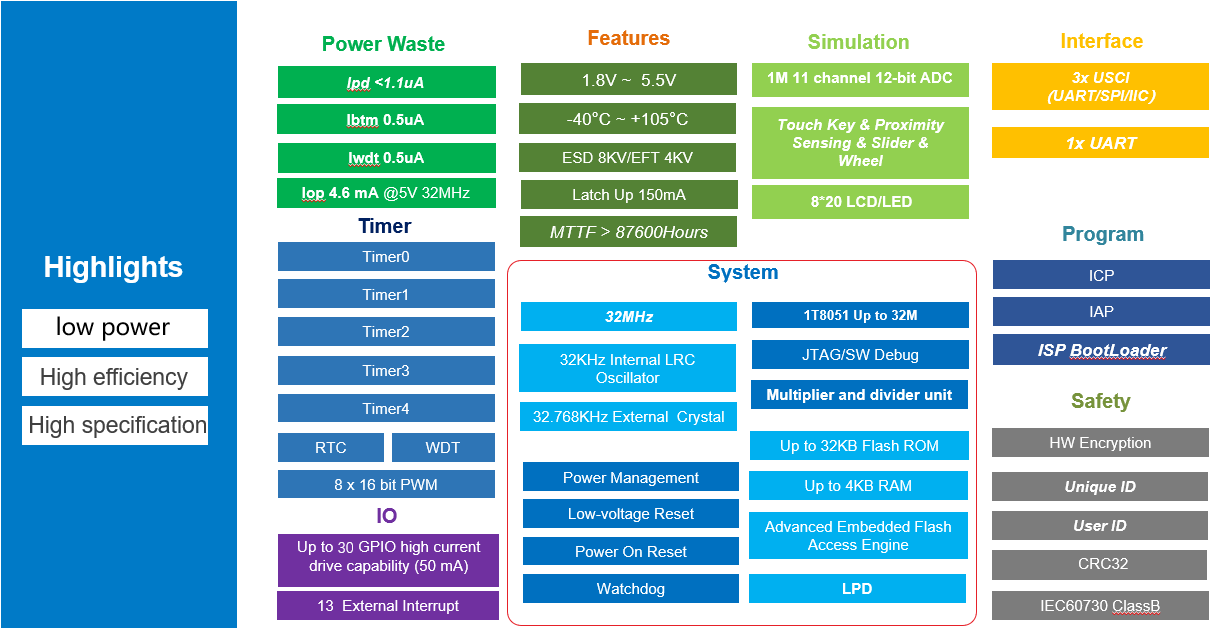

SC92L series touchkey MCU also integrates super-rich hardware resources: 16-64 kbytes Flash ROM, up to 4 Kbytes SRAM, 0-4 Kbytes LDROM, 1 Kbytes EEPROM and supported BootLoader; up to 46 GP I/Os, multiple externally interruptible IOs, 5 16-bit timers, up to 17-channel 12-bit high-precision ADC, built-in 2.4/1.024/2.048V ADC reference voltage, multi-channel complementary PWM with deal-time insertion, multiplier and divider, CRC check module, built-in LCD/LED driver; internal high-precision high-frequency 32MHz oscillator, /1 /2 /4 /8 frequency division of high frequency clock for system clock, internal ±4% precision low-frequency 32kHz oscillator, externally connected 32.768kHz crystal oscillator and 8 levels of LPD, UART, SPI, TWI and other communication interfaces.

SC92L series touchkey MCU is convenient for developing and debugging, featuring In-System Programing (ISP), In-Circuit Programing (ICP) and In-Application Programing (IAP). It is allowed to debug and upgrade the program memory directly on the circuit board even when the chip is working or powered on.

SC92L series touchkey MCU is characterized with excellent anti-interference performance, which is highly suitable for applications in IoT controls, smoke sensor, intelligent household appliances, RF modules, smart wearable products, Sensor/MEMS modules, temperature/humidity recorders and battery power supply, etc.

SC92L  TK.png

Download

Add to compare

Compare(0)

export

  P/N PKG Type ROM
(Byte)
RAM
(Byte)
IAP
(100K times)
BootLoader EEPROM
(100K times)
Voltage
(V)
2%IRC MHz
(32K Autocorrection)
TK
(Max)
UART USCI
(UART/SPI/IIC)
ADC PWM
(Full Function)
LCD/LED Driver Touch Key Application type Touch Key Performance

4 total entries

  P/N PKG Type ROM
(Byte)
RAM
(Byte)
IAP
(100K times)
BootLoader EEPROM
(100K times)
Voltage
(V)
2%IRC MHz
(32K Autocorrection)
TK
(Max)
UART USCI
(UART/SPI/IIC)
ADC PWM
(Full Function)
LCD/LED Driver Touch Key Application type Touch Key Performance
  P/N PKG Type ROM
(Byte)
RAM
(Byte)
IAP
(100K times)
BootLoader EEPROM
(100K times)
Voltage
(V)
2%IRC MHz
(32K Autocorrection)
TK
(Max)
UART USCI
(UART/SPI/IIC)
ADC PWM
(Full Function)
LCD/LED Driver Touch Key Application type Touch Key Performance
SC92L8531 SOP16 32K 4K 0/1/2/32 Built-in0/1/2/4K 1KB 1.8~5.5V 24/12/6/3 13 1 2 12bit*6ch 16bit*5ch - Spring Buttons/Touchless Buttons/Proximity Sensing 10V dynamic CS /EFT 4KV
SC92L8532 SOP20/TSSOP20/QFN20 32K 4K 0/1/2/32 Built-in0/1/2/4K 1KB 1.8~5.5V 24/12/6/3 17 1 3 12bit*7ch 16bit*8ch 4*14 Spring Buttons/Touchless Buttons/Proximity Sensing 10V dynamic CS /EFT 4KV
SC92L8533 SOP28/TSSOP28/QFN28 32K 4K 0/1/2/32 Built-in0/1/2/4K 1KB 1.8~5.5V 24/12/6/3 23 1 3 12bit*11ch 16bit*8ch 4*20 Spring Buttons/Touchless Buttons/Proximity Sensing 10V dynamic CS /EFT 4KV
SC92L8535 LQFP32/QFN32 32K 4K 0/1/2/32 Built-in0/1/2/4K 1KB 1.8~5.5V 24/12/6/3 27 1 3 12bit*11ch 16bit*8ch 8*20/6*22/5*23/4*24 Spring Buttons/Touchless Buttons/Proximity Sensing 10V dynamic CS /EFT 4KV
Select all
Title Describe Version Language Type Size Updated Download
datasheet V0.1 English PDF 2.77MB 2022-06-10 Download
Select all
Title Describe Version Language Type Size Updated Download
The key points of the MCU PCB design of SailOne touch button MCU are introduced V1.0 English PDF 1.62MB 2023-02-02 Download
Select all
Title Describe Version Language Type Size Updated Download
Select all
Title Describe Version Language Type Size Updated Download
selection guide V1.0 English PDF 4.47MB 2022-04-06 Download
