Operating Conditions

l  Voltage Range : 2.0V~5.5V

l  Temperature Range : -40℃ ~ +105℃

EMS

l  ESD

n  HBM：MIL-STD-883J Class 3A

n  MM：JEDEC EIA/JESD22-A115 Class C

l  EFT

n  EN61000-4-4 Level 4

CPU

l  8-bit 1T 8051 core CMOS microcontroller, instruction set fully compatible with MCS-51

Flash ROM

l  32 Kbytes Flash ROM

n  The APROM area can be set to the range of IAP operation to 0K / 1K / 2K/all APROM through the Code Option setting item

l  LDROM:

n  Used to store the user's BootLoader boot code

n  The LDROM can be set to 0K/1K/2K/4K through the Code Option setting item

l  EEPROM:

n  Independent 1K bytes EEPROM

n  100,000 times of writing, and more than 100 years of storage life at room temperature

SRAM:

n   Internal 256 bytes

n  1792 Bytes Indirect Access RAM (XRAM)

n  Additional 44 bytes PWM&LCD RAM

Unique ID:

l  96 bits Unique ID, which stores the unique identifier of an IC

System Clock（f_SYS）

l  Built-in high frequency 32MHz oscillator (f_HRC)

l  The system clock frequency (fsys) of the IC can be selected and set by the programmer as: 32/16/8/2.66 MHz @2.0~5.5V

l  Frequency Error:  Across (2.0~5.5V) and (-20 ~ 85℃) application environment, the frequency error is not more than ±2%

l  The system clock can be automatically calibrated by 32.768kHz external crystal oscillator, after calibration HRC accuracy can be infinitely close to the accuracy of external 32.768kHz crystal oscillator.

Built-in low-frequency crystal oscillator circuit:

l  32.768k oscillator can be connected externally as a Base Timer clock source, and wake up STOP

Built-in low-frequency 32kHz oscillator (LRC):

l  Used as the clock source for Base Timer and WDT, and wake up STOP

l  Frequency Error:  Across (4.0~5.5V) and (-20 ~ 85℃) application environment, after the register correction frequency error is not more than ±4%

Low-voltage Reset (LVR)

l   4 options of reset voltage: 4.3/3.7/ 2.9/1.9V

l  The default value can be selected by the Code Option

Flash Programming and Emulation

l  2-wire JTAG programming and emulation interface

l  Jtag-specific mode and regular mode can be set through Code Option

Interrupts (INT)

l  Up to 13 interrupt sources including Timer0~Timer2, INT0~2, ADC, PWM, UART, SSI, Base Timer, TK, CMP

l  External interrupt contains 3 interrupt vectors, 16 interrupt ports. All can set up rising edge, falling edge, dual edge interrupt.

l  Two-level interrupt priority capability

Digital Peripheral:

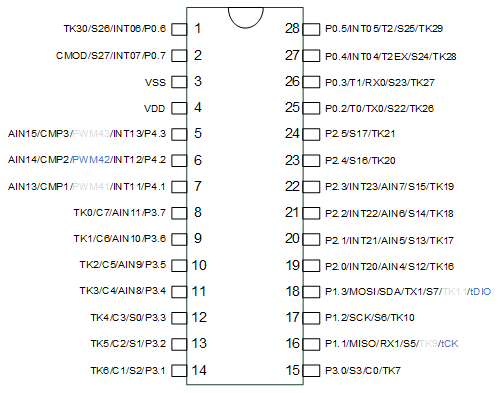

l  Up to 26 bidirectional independently controllable I/O ports

n  The pull-up resistors can be set independently

n  All I/Os have large sink current drive capability (50mA)

n  P0~P3L (P3.0/1/2/3) port source drive capability is divided into four levels

l  Built-in WDT, optional clock frequency division ratio

l  3 standard 80C51 timers ：Timer0, Timer1, and Timer2. Timer2 provides the Capture function

l  2-channel common cycle and duty cycle independent adjustable 12-bit PWM

l  1 independent UART communication port

l  1 UART/SPI/TWI communication interfaces (SSI)

l  1 integrated with 16 * 16-bit hardware Multiplier-Divide Unit (MDU)

LCD/LED driver:

n  Choose one of two LCD/LED drive functions, share registers and I/O ports

n  LED driver: 4 X 19  or 8 X 15 segments

n  LED segment port source drive capability is selectable in four levels

n  LCD driver: 4 X 19  or 8 X 15 segments

Analog Peripheral

l  12-channel 12-bit ±2 LSB ADC

n  Built-in 1.024V, 2.4V and 2.048V reference voltages

n  The ADC reference voltages is optional: V_DD, 1.024V, 2.4V, 2.048V

n  One internal channel can measure the voltage of the power supply

n  The sampling clock of the ADC circuit follows the f_SYS

n  ADC conversion can be set to complete the interrupt

l  1 Analog Comparator

n  The positive input of the analog comparator can be selected as:

u  CMP0-3 One of four input ports

u  Internal 1.5V reference voltage

n  4-channel input and 1-channel reference voltage input

n  Can awaken the STOP mode

n  16-level optional comparison voltage

l 22 channels low-power high sensitivity mode TouchKey circuit:

n  Support low-power mode

n  It can be used for touch control applications with high sensitivity, such as spacer touch key control and proximity sensing

n  Able to pass 10V dynamic CS test

n  It can realize 22 high sensitivity spacer touch key and derivative functions

n  High flexibility development software library support, low development difficulty

n  Automatic debugging software support, intelligent development

Power Saving Mode

l  IDLE Mode: can be woken up by any interrupt

l  STOP Mode: can be woken up by INT0~2, Base Timer, CMP and TK.
